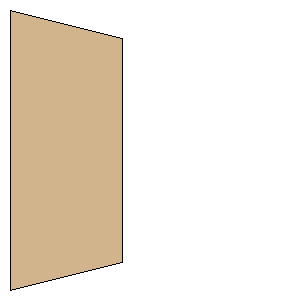

XR71 Greenburd Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Quest | | Part Number: | Payloader One | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 2.5000 inches (63.5000 mm) | | Tip Chord: | 2.0000 inches (50.8000 mm) | | Sweep Distance: | 0.2553 inches (6.4846 mm) | | SemiSpan: | 1.0000 inches (25.4000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (25.4000 mm, 6.4846 mm) | | Point 3: | (25.4000 mm, 57.2846 mm) | | Point 4: | (0.0000 mm, 63.5000 mm) | | Width: | 1.0000 inches (25.4000 mm) | | Height: | 2.5000 inches (63.5000 mm) |
