Quest Payloader One Trapezoid Fi Trapezoid Fin Set

Manufacturer:Quest
Part Number:Payloader One
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

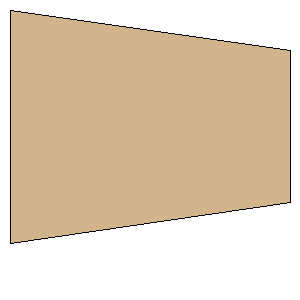

Root Chord:1.5000 inches (38.1000 mm)
Tip Chord:0.9800 inches (24.8920 mm)
Sweep Distance:0.2600 inches (6.6040 mm)
SemiSpan:1.8000 inches (45.7200 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(45.7200 mm, 6.6040 mm)
Point 3:(45.7200 mm, 31.4960 mm)
Point 4:(0.0000 mm, 38.1000 mm)
Width:1.8000 inches (45.7200 mm)
Height:1.5000 inches (38.1000 mm)
