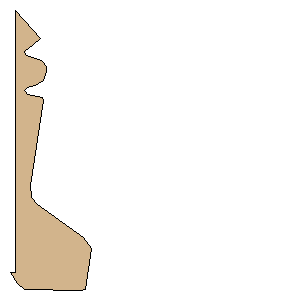

Semroc-Snake Jumper.rkt Freeform Freeform Fin Set| Manufacturer: | Quest | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Cardboard |
Download as PDF | Point 1: | (0.0000 mm, 152.4000 mm) | | Point 2: | (-3.1496 mm, 152.4000 mm) | | Point 3: | (1.0414 mm, 158.7500 mm) | | Point 4: | (4.9784 mm, 162.0520 mm) | | Point 5: | (38.1000 mm, 162.5600 mm) | | Point 6: | (40.6400 mm, 162.3060 mm) | | Point 7: | (43.9420 mm, 138.4300 mm) | | Point 8: | (39.6240 mm, 131.8260 mm) | | Point 9: | (12.9286 mm, 112.7760 mm) | | Point 10: | (9.3980 mm, 108.7120 mm) | | Point 11: | (8.7122 mm, 102.1080 mm) | | Point 12: | (16.5100 mm, 52.8320 mm) | | Point 13: | (15.8750 mm, 51.0540 mm) | | Point 14: | (7.1120 mm, 48.7680 mm) | | Point 15: | (5.1816 mm, 46.7360 mm) | | Point 16: | (6.8072 mm, 44.9580 mm) | | Point 17: | (11.5824 mm, 43.6880 mm) | | Point 18: | (16.5100 mm, 40.8940 mm) | | Point 19: | (18.2880 mm, 35.8902 mm) | | Point 20: | (17.9070 mm, 32.5120 mm) | | Point 21: | (15.2400 mm, 29.4640 mm) | | Point 22: | (6.4770 mm, 26.4160 mm) | | Point 23: | (5.0800 mm, 24.7650 mm) | | Point 24: | (5.5880 mm, 23.5204 mm) | | Point 25: | (6.9596 mm, 22.6822 mm) | | Point 26: | (14.4780 mm, 16.6116 mm) | | Point 27: | (0.0000 mm, 0.0000 mm) | | Width: | 6.1240 inches (155.5496 mm) | | Height: | 6.4000 inches (162.5600 mm) |
