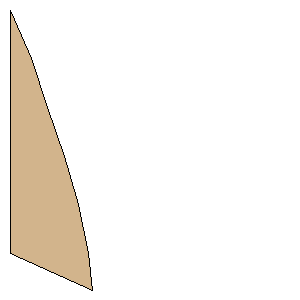

Arrow_2d_mk1 Freeform Fin Set Freeform Fin Set| Manufacturer: | rer | | Part Number: | 1 | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 127.0000 mm) | | Point 2: | (43.1800 mm, 146.0500 mm) | | Point 3: | (40.8940 mm, 127.0000 mm) | | Point 4: | (35.8140 mm, 101.6000 mm) | | Point 5: | (28.1940 mm, 76.2000 mm) | | Point 6: | (19.8120 mm, 50.8000 mm) | | Point 7: | (11.1760 mm, 25.4000 mm) | | Point 8: | (0.0000 mm, 0.0000 mm) | | Width: | 5.0000 inches (127.0000 mm) | | Height: | 5.7500 inches (146.0500 mm) |
