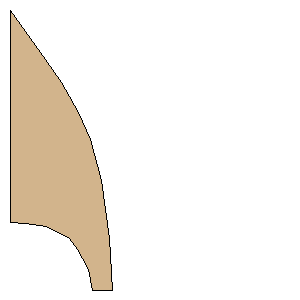

Semroc-Moon Glo.rkt Freeform Fin Freeform Fin Set| Manufacturer: | Semroc | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 77.9018 mm) | | Point 2: | (5.7658 mm, 78.1304 mm) | | Point 3: | (13.5382 mm, 79.1718 mm) | | Point 4: | (21.3360 mm, 83.3120 mm) | | Point 5: | (24.9174 mm, 87.6300 mm) | | Point 6: | (28.6512 mm, 95.0468 mm) | | Point 7: | (30.2260 mm, 102.6160 mm) | | Point 8: | (37.5158 mm, 102.6160 mm) | | Point 9: | (36.5760 mm, 83.8200 mm) | | Point 10: | (33.5788 mm, 62.5602 mm) | | Point 11: | (29.5402 mm, 47.3202 mm) | | Point 12: | (25.1460 mm, 37.7444 mm) | | Point 13: | (19.0500 mm, 26.5176 mm) | | Point 14: | (11.3030 mm, 15.4432 mm) | | Point 15: | (0.0000 mm, 0.0000 mm) | | Width: | 3.0670 inches (77.9018 mm) | | Height: | 4.0400 inches (102.6160 mm) |
