Rocketry Parts Database >> Fins >>

Semroc-VF-261.rkt Freeform Fin S Freeform Fin Set

Manufacturer:Semroc
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

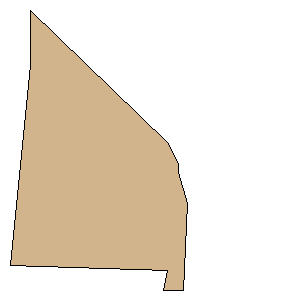

Point 1:(0.0000 mm, 14.6598 mm)
Point 2:(-5.3340 mm, 67.2084 mm)
Point 3:(36.0680 mm, 68.5800 mm)
Point 4:(35.0594 mm, 73.7389 mm)
Point 5:(40.4524 mm, 73.7389 mm)
Point 6:(41.3512 mm, 50.9270 mm)
Point 7:(38.9890 mm, 42.9260 mm)
Point 8:(39.1414 mm, 40.7416 mm)
Point 9:(36.0426 mm, 34.8488 mm)
Point 10:(0.0000 mm, 0.0000 mm)
Width:1.8380 inches (46.6852 mm)
Height:2.9031 inches (73.7389 mm)
