Rocketry Parts Database >> Fins >>

Semroc - Boids Freeform Fin Set Freeform Fin Set

Manufacturer:Semroc
Part Number:FV-4
Style:Freeform Fin Set
Material:Balsa

Download as PDF

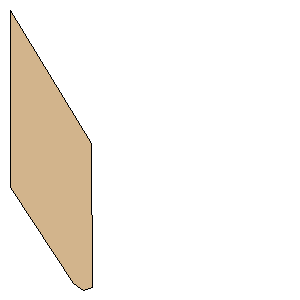

Point 1:(0.0000 mm, 70.6120 mm)
Point 2:(25.1665 mm, 108.8968 mm)
Point 3:(29.3303 mm, 111.3951 mm)
Point 4:(32.6613 mm, 110.2847 mm)
Point 5:(32.3837 mm, 53.1024 mm)
Point 6:(0.0000 mm, 0.0000 mm)
Width:2.7800 inches (70.6120 mm)
Height:4.3856 inches (111.3951 mm)
