Rocketry Parts Database >> Fins >>

Semroc - Astron Freeform Fin Set Freeform Fin Set

Manufacturer:Semroc
Part Number:FV-4
Style:Freeform Fin Set
Material:Balsa

Download as PDF

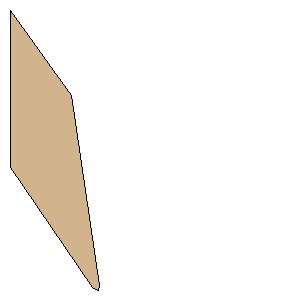

Point 1:(0.0000 mm, 71.1200 mm)
Point 2:(37.0840 mm, 125.4760 mm)
Point 3:(39.8780 mm, 126.4920 mm)
Point 4:(40.6400 mm, 124.4600 mm)
Point 5:(27.6860 mm, 38.5572 mm)
Point 6:(0.0000 mm, 0.0000 mm)
Width:2.8000 inches (71.1200 mm)
Height:4.9800 inches (126.4920 mm)
