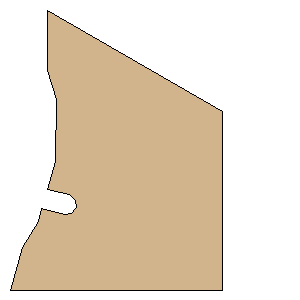

Semroc-Arcas.rkt Freeform Fin Se Freeform Fin Set| Manufacturer: | Semroc | | Part Number: | FS-9 | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 12.3444 mm) | | Point 2: | (1.6764 mm, 18.4404 mm) | | Point 3: | (1.5240 mm, 31.1150 mm) | | Point 4: | (-0.1778 mm, 36.7030 mm) | | Point 5: | (4.3942 mm, 37.8968 mm) | | Point 6: | (5.7404 mm, 39.0652 mm) | | Point 7: | (5.9182 mm, 40.5892 mm) | | Point 8: | (4.9022 mm, 41.7830 mm) | | Point 9: | (3.3782 mm, 41.9354 mm) | | Point 10: | (-1.2344 mm, 40.7670 mm) | | Point 11: | (-2.0320 mm, 43.4594 mm) | | Point 12: | (-5.2324 mm, 48.7172 mm) | | Point 13: | (-7.7724 mm, 57.4040 mm) | | Point 14: | (35.8648 mm, 57.4040 mm) | | Point 15: | (35.8140 mm, 20.8280 mm) | | Point 16: | (0.0000 mm, 0.0000 mm) | | Width: | 1.7180 inches (43.6372 mm) | | Height: | 2.2600 inches (57.4040 mm) |
