Semroc BatRoK Freeform Fin Set Freeform Fin Set| Manufacturer: | Semroc | | Part Number: | FV-53 | | Style: | Freeform Fin Set | | Material: | Balsa |

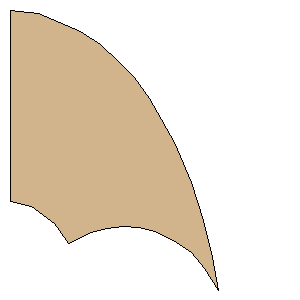

Download as PDF | Point 1: | (0.0000 mm, 38.1000 mm) | | Point 2: | (4.3180 mm, 39.1160 mm) | | Point 3: | (8.8900 mm, 42.4189 mm) | | Point 4: | (11.6840 mm, 46.4820 mm) | | Point 5: | (16.2560 mm, 44.1960 mm) | | Point 6: | (19.2582 mm, 43.4164 mm) | | Point 7: | (22.6060 mm, 42.9260 mm) | | Point 8: | (25.7024 mm, 43.1540 mm) | | Point 9: | (28.8798 mm, 44.0436 mm) | | Point 10: | (32.5020 mm, 45.7773 mm) | | Point 11: | (35.9664 mm, 48.1584 mm) | | Point 12: | (38.7132 mm, 51.4053 mm) | | Point 13: | (41.4020 mm, 55.6260 mm) | | Point 14: | (40.2215 mm, 49.2411 mm) | | Point 15: | (38.3540 mm, 41.9100 mm) | | Point 16: | (36.0083 mm, 34.3530 mm) | | Point 17: | (32.7660 mm, 26.4160 mm) | | Point 18: | (27.6917 mm, 17.5557 mm) | | Point 19: | (24.7074 mm, 13.4971 mm) | | Point 20: | (21.8440 mm, 10.4140 mm) | | Point 21: | (17.9933 mm, 6.8192 mm) | | Point 22: | (13.9700 mm, 4.3180 mm) | | Point 23: | (5.5880 mm, 0.7620 mm) | | Point 24: | (0.0000 mm, 0.0000 mm) | | Width: | 1.6300 inches (41.4020 mm) | | Height: | 2.1900 inches (55.6260 mm) |
