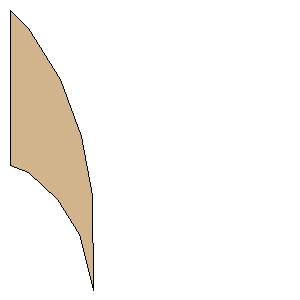

Semroc BatRoK Freeform Fin Set Freeform Fin Set| Manufacturer: | Semroc | | Part Number: | FV-53a | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 24.8920 mm) | | Point 2: | (3.0480 mm, 26.1620 mm) | | Point 3: | (7.6200 mm, 30.4800 mm) | | Point 4: | (11.1760 mm, 36.0680 mm) | | Point 5: | (13.4620 mm, 44.9580 mm) | | Point 6: | (13.2080 mm, 29.7180 mm) | | Point 7: | (11.4300 mm, 20.3200 mm) | | Point 8: | (8.1280 mm, 11.1760 mm) | | Point 9: | (3.0480 mm, 3.0480 mm) | | Point 10: | (0.0000 mm, 0.0000 mm) | | Width: | 0.9800 inches (24.8920 mm) | | Height: | 1.7700 inches (44.9580 mm) |
