Rocketry Parts Database >> Fins >>

Ismael Pacheco - Semroc - Maraud Freeform Fin Set

Manufacturer:Semroc
Part Number:FV-47 Thuderchief Fins
Style:Freeform Fin Set
Material:Balsa

Download as PDF

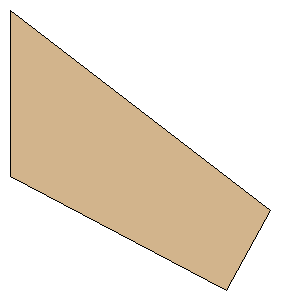

Point 1:(0.0000 mm, 42.1640 mm)
Point 2:(54.8640 mm, 71.1200 mm)
Point 3:(66.0400 mm, 50.8000 mm)
Point 4:(0.0000 mm, 0.0000 mm)
Width:2.6000 inches (66.0400 mm)
Height:2.8000 inches (71.1200 mm)
