Semroc-SLS Arcas.rkt Freeform Fi Freeform Fin Set| Manufacturer: | Semroc | | Part Number: | FS-5 | | Style: | Freeform Fin Set | | Material: | Basswood |

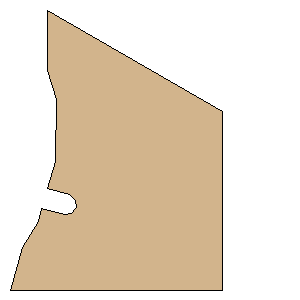

Download as PDF | Point 1: | (0.0000 mm, 18.5420 mm) | | Point 2: | (2.5400 mm, 27.6860 mm) | | Point 3: | (2.2860 mm, 46.7360 mm) | | Point 4: | (-0.2540 mm, 55.1180 mm) | | Point 5: | (6.6040 mm, 56.8960 mm) | | Point 6: | (8.6360 mm, 58.6740 mm) | | Point 7: | (8.8900 mm, 60.9600 mm) | | Point 8: | (7.3660 mm, 62.7380 mm) | | Point 9: | (5.0800 mm, 62.9920 mm) | | Point 10: | (-1.8542 mm, 61.2140 mm) | | Point 11: | (-3.0480 mm, 65.2780 mm) | | Point 12: | (-7.8740 mm, 73.1520 mm) | | Point 13: | (-11.6840 mm, 86.3600 mm) | | Point 14: | (53.8480 mm, 86.3600 mm) | | Point 15: | (53.8480 mm, 31.2420 mm) | | Point 16: | (0.0000 mm, 0.0000 mm) | | Width: | 2.5800 inches (65.5320 mm) | | Height: | 3.4000 inches (86.3600 mm) |
