Rocketry Parts Database >> Fins >>

Semroc-SLS Jaguar-29.rkt Freefor Freeform Fin Set

Manufacturer:Semroc
Part Number:FV-52
Style:Freeform Fin Set
Material:Basswood

Download as PDF

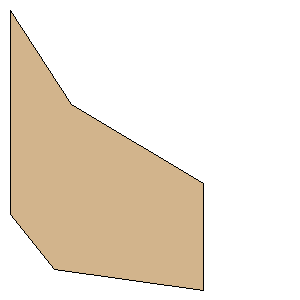

Point 1:(0.0000 mm, 63.7540 mm)
Point 2:(13.9700 mm, 81.0260 mm)
Point 3:(60.3250 mm, 87.3760 mm)
Point 4:(60.3250 mm, 54.1020 mm)
Point 5:(19.0500 mm, 29.5910 mm)
Point 6:(0.0000 mm, 0.0000 mm)
Width:2.5100 inches (63.7540 mm)
Height:3.4400 inches (87.3760 mm)
