Rocketry Parts Database >> Fins >>

Semroc - SLS Arcas Freeform Fin Freeform Fin Set

Manufacturer:Semroc
Part Number:FS-5
Style:Freeform Fin Set
Material:Basswood

Download as PDF

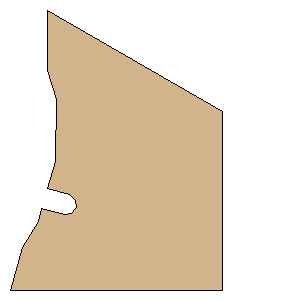

Point 1:(0.0000 mm, 18.5420 mm)
Point 2:(2.5400 mm, 27.6860 mm)
Point 3:(2.2860 mm, 46.7360 mm)
Point 4:(-0.2540 mm, 55.1180 mm)
Point 5:(6.6040 mm, 56.8960 mm)
Point 6:(8.6360 mm, 58.6740 mm)
Point 7:(8.8900 mm, 60.9600 mm)
Point 8:(7.3660 mm, 62.7380 mm)
Point 9:(5.0800 mm, 62.9920 mm)
Point 10:(-1.8542 mm, 61.2140 mm)
Point 11:(-3.0480 mm, 65.2780 mm)
Point 12:(-7.8740 mm, 73.1520 mm)
Point 13:(-11.6840 mm, 86.3600 mm)
Point 14:(53.8480 mm, 86.3600 mm)
Point 15:(53.8480 mm, 31.2420 mm)
Point 16:(0.0000 mm, 0.0000 mm)
Width:2.5800 inches (65.5320 mm)
Height:3.4000 inches (86.3600 mm)
