Rocketry Parts Database >> Fins >>

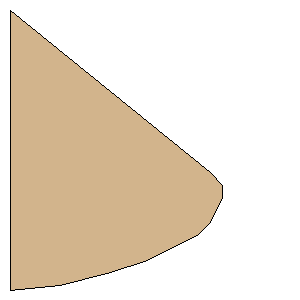

Red River Rocketry P-Chuter Xtre Freeform Fin Set

Manufacturer:Semroc
Part Number:FV-6
Style:Freeform Fin Set
Material:Basswood

Download as PDF

Point 1:(0.0000 mm, 142.2400 mm)
Point 2:(25.4000 mm, 139.7000 mm)
Point 3:(50.8000 mm, 133.3500 mm)
Point 4:(69.8500 mm, 127.0000 mm)
Point 5:(82.5500 mm, 120.6500 mm)
Point 6:(95.2500 mm, 114.3000 mm)
Point 7:(101.6000 mm, 107.9500 mm)
Point 8:(107.9500 mm, 95.2500 mm)
Point 9:(107.9500 mm, 88.9000 mm)
Point 10:(101.6000 mm, 82.5500 mm)
Point 11:(0.0000 mm, 0.0000 mm)
Width:5.6000 inches (142.2400 mm)
Height:5.6000 inches (142.2400 mm)
