Rocketry Parts Database >> Fins >>

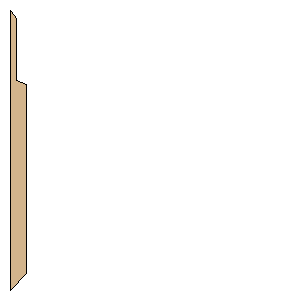

marlin_tlp_standard_agm_78 BT-80 Freeform Fin Set

Manufacturer:The Launch Pad
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 441.3250 mm)
Point 2:(25.4000 mm, 415.9250 mm)
Point 3:(25.4000 mm, 116.8400 mm)
Point 4:(9.5250 mm, 111.1250 mm)
Point 5:(9.5250 mm, 12.7000 mm)
Point 6:(0.0000 mm, 0.0000 mm)
Width:17.3750 inches (441.3250 mm)
Height:17.3750 inches (441.3250 mm)
