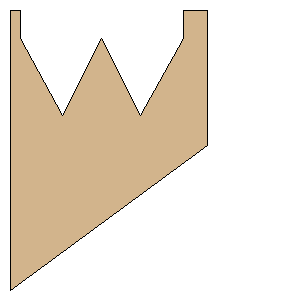

Wild_Thang_Jr_Two_Stage.rkt Free Freeform Fin Set| Manufacturer: | Wildman Rocketry | | Part Number: | | | Style: | Freeform Fin Set | | Material: | G10 fiberglass |
Download as PDF | Point 1: | (0.0000 mm, 102.9410 mm) | | Point 2: | (72.7690 mm, 49.6960 mm) | | Point 3: | (72.7690 mm, 0.0000 mm) | | Point 4: | (63.8940 mm, 0.0000 mm) | | Point 5: | (63.8940 mm, 10.6490 mm) | | Point 6: | (47.8500 mm, 38.9050 mm) | | Point 7: | (33.7930 mm, 10.6490 mm) | | Point 8: | (19.4520 mm, 38.9050 mm) | | Point 9: | (3.6920 mm, 10.6490 mm) | | Point 10: | (3.6920 mm, 0.0000 mm) | | Point 11: | (0.0000 mm, 0.0000 mm) | | Width: | 4.0528 inches (102.9410 mm) | | Height: | 4.0528 inches (102.9410 mm) |
