Rocketry Parts Database >> Fins >>

ShapeShifter_Jr_Two_Stage.rkt Fr Freeform Fin Set

Manufacturer:Wildman Rocketry
Part Number:
Style:Freeform Fin Set
Material:G10 fiberglass

Download as PDF

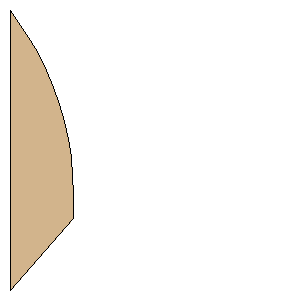

Point 1:(0.0000 mm, 289.2300 mm)
Point 2:(65.5320 mm, 215.5700 mm)
Point 3:(65.4730 mm, 190.4850 mm)
Point 4:(64.8517 mm, 171.5830 mm)
Point 5:(63.0790 mm, 152.7540 mm)
Point 6:(60.1615 mm, 134.0680 mm)
Point 7:(56.1102 mm, 115.5940 mm)
Point 8:(50.9400 mm, 97.4022 mm)
Point 9:(44.6701 mm, 79.5593 mm)
Point 10:(37.3240 mm, 62.1318 mm)
Point 11:(28.9290 mm, 45.1848 mm)
Point 12:(19.5163 mm, 28.7811 mm)
Point 13:(9.1209 mm, 12.9818 mm)
Point 14:(0.0000 mm, 0.0000 mm)
Width:11.3870 inches (289.2300 mm)
Height:11.3870 inches (289.2300 mm)
