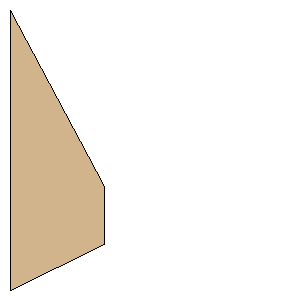

Intimidator_4.rkt Trapezoid Fin Trapezoid Fin Set| Manufacturer: | Wildman Rocketry | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 17.8750 inches (454.0250 mm) | | Tip Chord: | 3.7500 inches (95.2500 mm) | | Sweep Distance: | 11.2436 inches (285.5874 mm) | | SemiSpan: | 6.0500 inches (153.6700 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (153.6700 mm, 285.5874 mm) | | Point 3: | (153.6700 mm, 380.8374 mm) | | Point 4: | (0.0000 mm, 454.0250 mm) | | Width: | 6.0500 inches (153.6700 mm) | | Height: | 17.8750 inches (454.0250 mm) |
