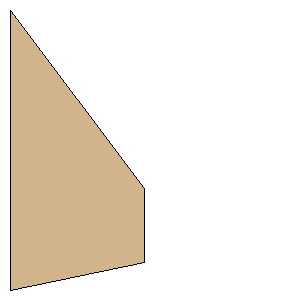

Wildman_Jr_Two_Stage.rkt Trapezo Trapezoid Fin Set| Manufacturer: | Wildman Rocketry | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 6.4310 inches (163.3474 mm) | | Tip Chord: | 1.6800 inches (42.6720 mm) | | Sweep Distance: | 4.1089 inches (104.3661 mm) | | SemiSpan: | 3.0870 inches (78.4098 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (78.4098 mm, 104.3661 mm) | | Point 3: | (78.4098 mm, 147.0381 mm) | | Point 4: | (0.0000 mm, 163.3474 mm) | | Width: | 3.0870 inches (78.4098 mm) | | Height: | 6.4310 inches (163.3474 mm) |
