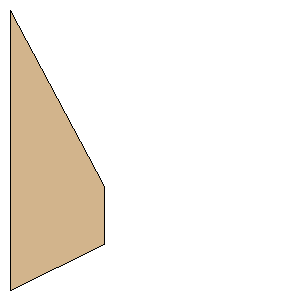

Intimidator_3.rkt Trapezoid Fin Trapezoid Fin Set| Manufacturer: | Wildman Rocketry | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 12.9060 inches (327.8124 mm) | | Tip Chord: | 2.7080 inches (68.7832 mm) | | Sweep Distance: | 8.1230 inches (206.3242 mm) | | SemiSpan: | 4.3680 inches (110.9472 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (110.9472 mm, 206.3242 mm) | | Point 3: | (110.9472 mm, 275.1074 mm) | | Point 4: | (0.0000 mm, 327.8124 mm) | | Width: | 4.3680 inches (110.9472 mm) | | Height: | 12.9060 inches (327.8124 mm) |
