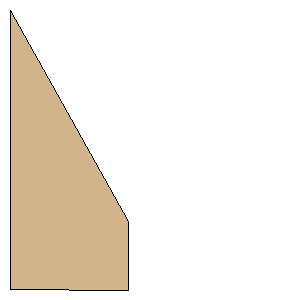

Eagle_Claw_Mini.rkt Trapezoid Fi Trapezoid Fin Set| Manufacturer: | Wildman Rocketry | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 fiberglass |
Download as PDF | Root Chord: | 4.8495 inches (123.1773 mm) | | Tip Chord: | 1.1900 inches (30.2260 mm) | | Sweep Distance: | 3.6600 inches (92.9640 mm) | | SemiSpan: | 2.0490 inches (52.0446 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (52.0446 mm, 92.9640 mm) | | Point 3: | (52.0446 mm, 123.1900 mm) | | Point 4: | (0.0000 mm, 123.1773 mm) | | Width: | 2.0490 inches (52.0446 mm) | | Height: | 4.8500 inches (123.1900 mm) |
