Scrambler Rocksim Design File

Comments: EMRR's 3rd virtual contest

Designer: Dick Stafford

Download virtual_contest_stafford_scrambler.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

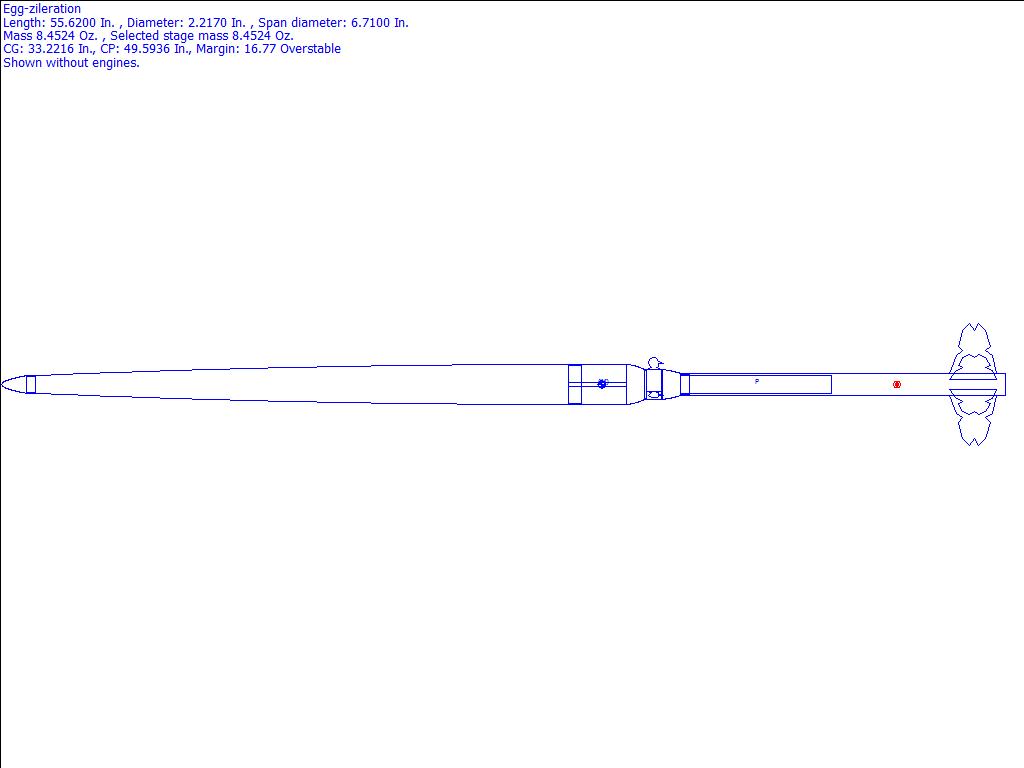

CG: 33.2216 inches from front
CP: 49.5936 inches from front
Margin: 16.77 Overstable

Parts Breakdown

• Scrambler Parabolic Nose Cone
• Custom ParabolicSeries Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.25 in]
• Custom Mass Object
• LOC LOC LL25 Launch Lug
• Custom Haack Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.00 in]
• Scrambler Freeform Fin Set Freeform Fin Set
• Custom Haack Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Scrambler Freeform Fin Set Freeform Fin Set
• Apogee Components Mylar Parachute (50.00 in)
