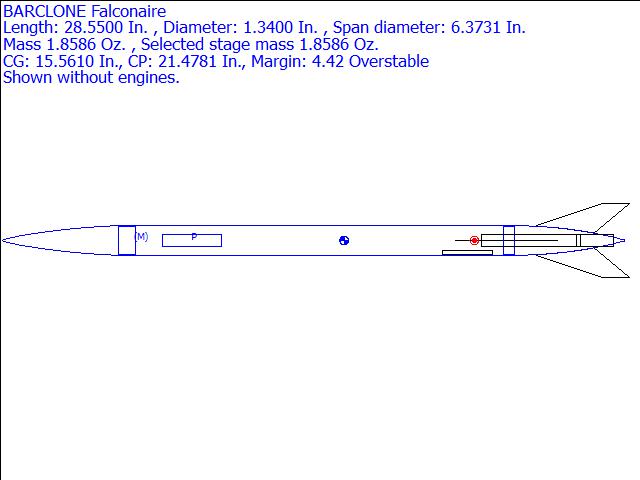

BARCLONE Falconaire Rocksim Design File

Designer: C. P. McGraw -- BARCLONE Rocketry

Visit Ye Olde Rocket Forum to download Falconaire.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 15.5610 inches from front
CP: 21.4781 inches from front
Margin: 4.42 Overstable

Parts Breakdown

• 1.3X_EAC_Viper.rkt Haack Nose Cone
• Semroc SE-10 Screw Eye Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Falconaire.rkt Freeform Fin Set Freeform Fin Set
• Falconaire.rkt Freeform Fin Set Freeform Fin Set
• Semroc Polyethylene LDPE Parachute (16.00 in)
• Semroc LL-122 Launch Lug
• Semroc LL-122 Launch Lug
• Semroc Ogive Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.00 in]
• Semroc TB-5 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.00 in]
• Semroc TB-5 Ring
