Rocketry Parts Database >> Fins >>

Estes-Indicator-7244 Two Stage c Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

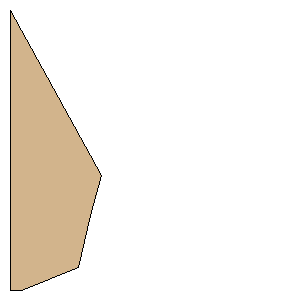

Point 1:(0.0000 mm, 77.7875 mm)
Point 2:(3.1750 mm, 77.7875 mm)
Point 3:(19.0500 mm, 71.4375 mm)
Point 4:(22.2250 mm, 57.1500 mm)
Point 5:(25.4000 mm, 46.0375 mm)
Point 6:(0.0000 mm, 0.0000 mm)
Width:3.0625 inches (77.7875 mm)
Height:3.0625 inches (77.7875 mm)
