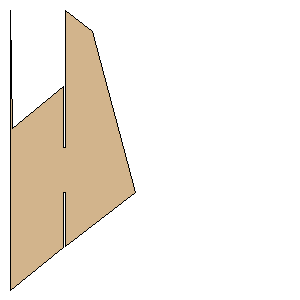

Estes Star Rider Freeform Fin Se Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 104.7750 mm) | | Point 2: | (19.8438 mm, 88.9000 mm) | | Point 3: | (19.8438 mm, 68.2625 mm) | | Point 4: | (20.6375 mm, 68.2625 mm) | | Point 5: | (20.6375 mm, 88.3920 mm) | | Point 6: | (46.8313 mm, 68.2625 mm) | | Point 7: | (30.9563 mm, 7.9375 mm) | | Point 8: | (20.6375 mm, 0.0000 mm) | | Point 9: | (20.6375 mm, 51.5938 mm) | | Point 10: | (19.8438 mm, 51.5938 mm) | | Point 11: | (19.8374 mm, 28.5750 mm) | | Point 12: | (0.7938 mm, 44.4500 mm) | | Point 13: | (0.0000 mm, 0.0000 mm) | | Width: | 4.1250 inches (104.7750 mm) | | Height: | 4.1250 inches (104.7750 mm) |
