Rocketry Parts Database >> Fins >>

Estes Vigilante Trapezoid Fin Se Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

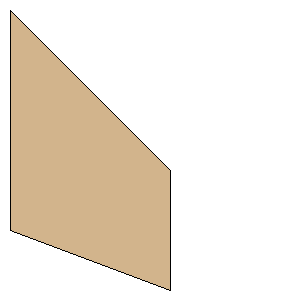

Root Chord:2.7500 inches (69.8500 mm)
Tip Chord:1.5000 inches (38.1000 mm)
Sweep Distance:2.0000 inches (50.8000 mm)
SemiSpan:2.0000 inches (50.8000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(50.8000 mm, 50.8000 mm)
Point 3:(50.8000 mm, 88.9000 mm)
Point 4:(0.0000 mm, 69.8500 mm)
Width:2.0000 inches (50.8000 mm)
Height:3.5000 inches (88.9000 mm)
