Designs >> Rocksim Library >>	All Rocksim Designs (1576 of 3219)Tag - Manufacturer:Estes

Vigilante Rocksim Design File

• Manufacturer: Estes
• Motor Size: 18 mm
• Power: Low-Power
• Recovery: Parachute
• Skill Level: 2
• Style: Multi-Stage

Comments: fins are about right, but are not from exact measurements

Designer: Entered into RockSim by Alan Estenson

Download oop_estes_1278_vigilante.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

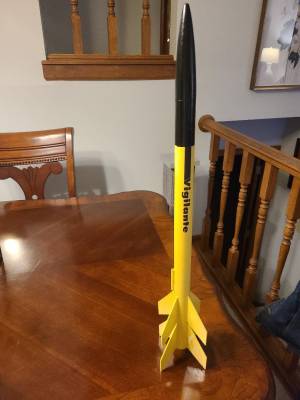

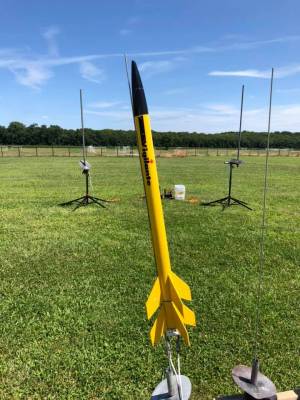

Kit Name: Estes - Vigilante {Kit} (1278) [1976-1983]

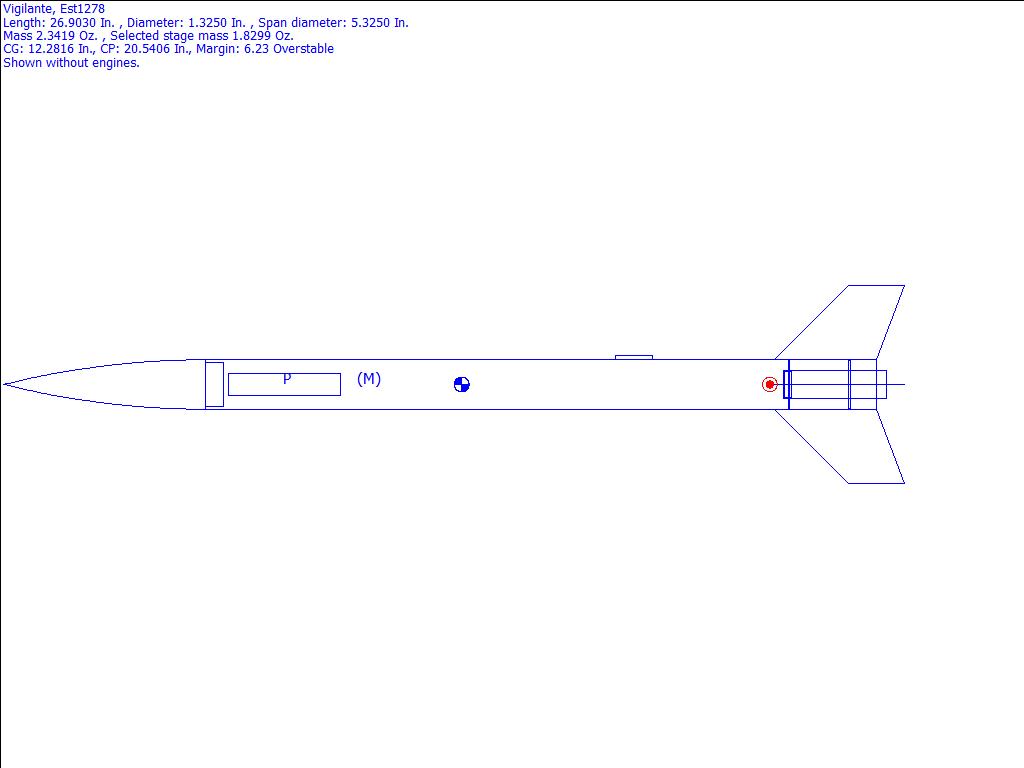

Diameter: 1.3250 inches
Length: 26.5000 inches
Style: Multi-Stage

CG: 12.2816 inches from front
CP: 20.5406 inches from front
Margin: 6.23 Overstable

•
•

Parts Breakdown

• 2-cluster 4-fin Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Estes 30162-2 Ring
• Estes ESTES 2321 Launch Lug
• Estes Vigilante Trapezoid Fin Se Trapezoid Fin Set
• Custom Mass Object
• Estes Polyethylene LDPE Parachute (18.00 in)
• Estes 30125 Ring
• Estes 30125 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Estes Estes Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.25 in]
• Estes Vigilante Trapezoid Fin Se Trapezoid Fin Set
• Estes 30125 Ring
• Estes 30125 Ring
