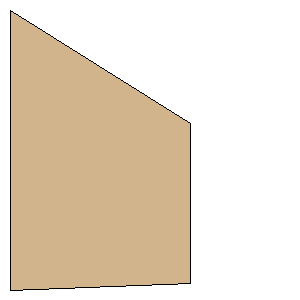

Quest Tomahawk SLCM Trapezoid Fi Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 1.7500 inches (44.4500 mm) | | Tip Chord: | 1.0000 inches (25.4000 mm) | | Sweep Distance: | 0.7100 inches (18.0340 mm) | | SemiSpan: | 1.1250 inches (28.5750 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (28.5750 mm, 18.0340 mm) | | Point 3: | (28.5750 mm, 43.4340 mm) | | Point 4: | (0.0000 mm, 44.4500 mm) | | Width: | 1.1250 inches (28.5750 mm) | | Height: | 1.7500 inches (44.4500 mm) |
