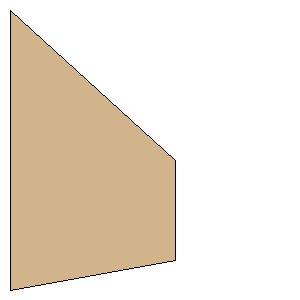

Orion Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

Root Chord:4.4000 inches (111.7600 mm)
Tip Chord:1.5700 inches (39.8780 mm)
Sweep Distance:2.3700 inches (60.1980 mm)
SemiSpan:2.6000 inches (66.0400 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(66.0400 mm, 60.1980 mm)
Point 3:(66.0400 mm, 100.0760 mm)
Point 4:(0.0000 mm, 111.7600 mm)
Width:2.6000 inches (66.0400 mm)
Height:4.4000 inches (111.7600 mm)
