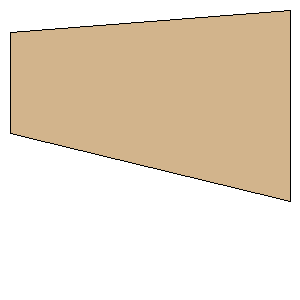

Custom Basswood Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Basswood |
Download as PDF | Root Chord: | 1.1811 inches (29.9999 mm) | | Tip Chord: | 2.2441 inches (57.0001 mm) | | Sweep Distance: | -0.2630 inches (-6.6802 mm) | | SemiSpan: | 3.2803 inches (83.3196 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (83.3196 mm, -6.6802 mm) | | Point 3: | (83.3196 mm, 50.3199 mm) | | Point 4: | (0.0000 mm, 29.9999 mm) | | Width: | 3.2803 inches (83.3196 mm) | | Height: | 2.2441 inches (57.0001 mm) |
