Custom Cardboard Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Cardboard |

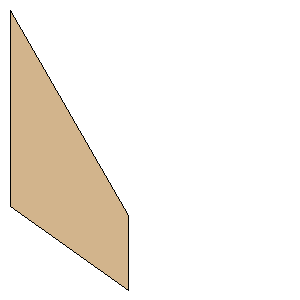

Download as PDF | Root Chord: | 1.2992 inches (32.9997 mm) | | Tip Chord: | 0.4921 inches (12.4993 mm) | | Sweep Distance: | 1.3638 inches (34.6405 mm) | | SemiSpan: | 0.7874 inches (20.0000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (20.0000 mm, 34.6405 mm) | | Point 3: | (20.0000 mm, 47.1399 mm) | | Point 4: | (0.0000 mm, 32.9997 mm) | | Width: | 0.7874 inches (20.0000 mm) | | Height: | 1.8559 inches (47.1399 mm) |
