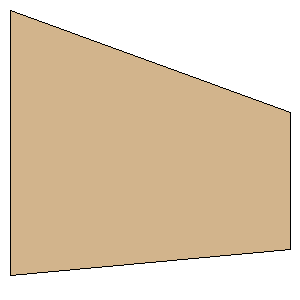

Estes - Trajector Trapezoid Fin Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Cellulose Acetate Propionate |
Download as PDF | Root Chord: | 3.8750 inches (98.4250 mm) | | Tip Chord: | 2.0000 inches (50.8000 mm) | | Sweep Distance: | 1.4923 inches (37.9044 mm) | | SemiSpan: | 4.0880 inches (103.8352 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (103.8352 mm, 37.9044 mm) | | Point 3: | (103.8352 mm, 88.7044 mm) | | Point 4: | (0.0000 mm, 98.4250 mm) | | Width: | 4.0880 inches (103.8352 mm) | | Height: | 3.8750 inches (98.4250 mm) |
