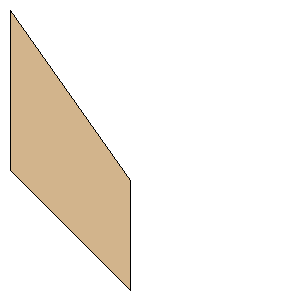

Estes Tornado Kit #2004 Trapezo Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Fir (White) |
Download as PDF | Root Chord: | 2.0000 inches (50.8000 mm) | | Tip Chord: | 1.3750 inches (34.9250 mm) | | Sweep Distance: | 2.1250 inches (53.9750 mm) | | SemiSpan: | 1.5000 inches (38.1000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (38.1000 mm, 53.9750 mm) | | Point 3: | (38.1000 mm, 88.9000 mm) | | Point 4: | (0.0000 mm, 50.8000 mm) | | Width: | 1.5000 inches (38.1000 mm) | | Height: | 3.5000 inches (88.9000 mm) |
