Rocketry Parts Database >> Fins >>

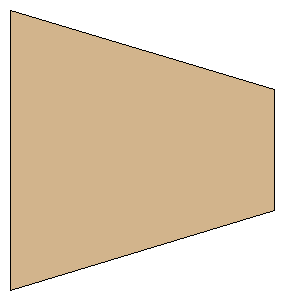

Custom G10 (PML 0.062") Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:G10 (PML 0.062")

Download as PDF

Root Chord:5.5500 inches (140.9700 mm)
Tip Chord:2.4000 inches (60.9600 mm)
Sweep Distance:1.5752 inches (40.0101 mm)
SemiSpan:5.2500 inches (133.3500 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(133.3500 mm, 40.0101 mm)
Point 3:(133.3500 mm, 100.9701 mm)
Point 4:(0.0000 mm, 140.9700 mm)
Width:5.2500 inches (133.3500 mm)
Height:5.5500 inches (140.9700 mm)
