Rocketry Parts Database >> Fins >>

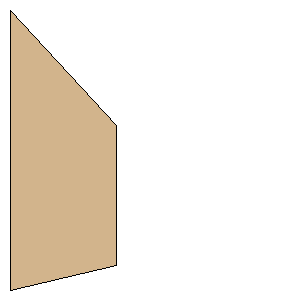

Harpoon AGM-84A 30 Percent 4" Mo Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:"G10 (PML 0.062"")"

Download as PDF

Point 1:(0.0000 mm, 215.6668 mm)
Point 2:(82.3515 mm, 196.6311 mm)
Point 3:(82.3515 mm, 88.9403 mm)
Point 4:(0.0000 mm, 0.0000 mm)
Width:8.4908 inches (215.6668 mm)
Height:8.4908 inches (215.6668 mm)
