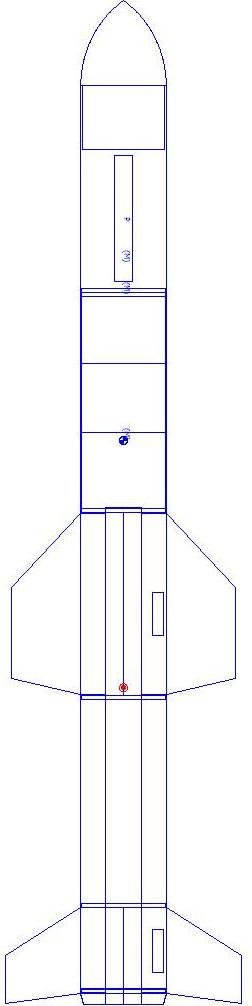

Harpoon AGM-84A 30 Percent 4" Model Rocksim Design File

• Manufacturer: Scratch

Designer: Carl Tulanko

Download scratch_harpoon30percent.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Scratch - AGM-84 Harpoon {Scratch}

CG: 20.6125 inches from front
CP: 32.1940 inches from front
Margin: 2.90 Overstable

Parts Breakdown

• Harpoon AGM-84A 30 Percent 4" Mo Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 16.25 in]
• b2 Rocketry 1.3 oz. Ripstop Nylon (SkyAngle) Parachute (35.41 in)
• Custom Mass Object
• Custom Mass Object
• Public Missiles CBP-3.9 Ring
• Public Missiles Ltd. CT-3.90 Ring
• Custom Mass Object
• Public Missiles Ltd. CT-3.90 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 26.25 in]
• Public Missiles LL-0.50 Launch Lug
• Public Missiles CR-3.9-1.5 Ring
• Harpoon AGM-84A 30 Percent 4" Mo Freeform Fin Set
• Public Missiles CR-3.9-1.5 Ring
• Public Missiles CR-3.9-1.5 Ring
• Public Missiles LL-0.50 Launch Lug
• Harpoon AGM-84A 30 Percent 4" Mo Freeform Fin Set
• Public Missiles CR-3.9-1.5 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 23.25 in]
• Public Missiles Conical Transition
