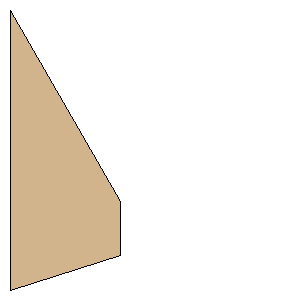

Madcow Rocketry Viper Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | G10 (PML 0.093) |
Download as PDF | Root Chord: | 6.1811 inches (156.9999 mm) | | Tip Chord: | 1.1811 inches (29.9999 mm) | | Sweep Distance: | 4.2280 inches (107.3912 mm) | | SemiSpan: | 2.4409 inches (61.9989 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (61.9989 mm, 107.3912 mm) | | Point 3: | (61.9989 mm, 137.3911 mm) | | Point 4: | (0.0000 mm, 156.9999 mm) | | Width: | 2.4409 inches (61.9989 mm) | | Height: | 6.1811 inches (156.9999 mm) |
