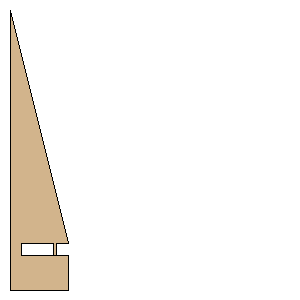

Estes AGM-57X Heatseeker EST 215 Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Polystyrene PS |
Download as PDF | Point 1: | (0.0000 mm, 152.4000 mm) | | Point 2: | (31.7500 mm, 152.4000 mm) | | Point 3: | (31.7500 mm, 133.3500 mm) | | Point 4: | (6.3500 mm, 133.3500 mm) | | Point 5: | (6.3500 mm, 127.0000 mm) | | Point 6: | (23.8125 mm, 127.0000 mm) | | Point 7: | (23.8125 mm, 133.3500 mm) | | Point 8: | (25.4000 mm, 133.3500 mm) | | Point 9: | (25.4000 mm, 127.0000 mm) | | Point 10: | (31.7500 mm, 127.0000 mm) | | Point 11: | (0.0000 mm, 0.0000 mm) | | Width: | 6.0000 inches (152.4000 mm) | | Height: | 6.0000 inches (152.4000 mm) |
