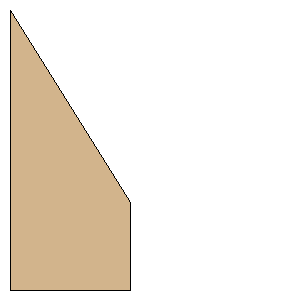

Custom Polystyrene PS Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Polystyrene PS |
Download as PDF | Root Chord: | 2.7559 inches (69.9999 mm) | | Tip Chord: | 0.8661 inches (21.9989 mm) | | Sweep Distance: | 1.8898 inches (48.0009 mm) | | SemiSpan: | 1.1811 inches (29.9999 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (29.9999 mm, 48.0009 mm) | | Point 3: | (29.9999 mm, 69.9999 mm) | | Point 4: | (0.0000 mm, 69.9999 mm) | | Width: | 1.1811 inches (29.9999 mm) | | Height: | 2.7559 inches (69.9999 mm) |
