Rocketry Parts Database >> Fins >>

Orion Freeform Fin Set Freeform Fin Set

Manufacturer:DynaStar
Part Number:Snarky Main Wing
Style:Freeform Fin Set
Material:Balsa

Download as PDF

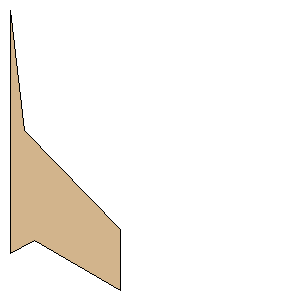

Point 1:(0.0000 mm, 256.5400 mm)
Point 2:(25.4000 mm, 242.5700 mm)
Point 3:(116.8400 mm, 295.2750 mm)
Point 4:(116.8400 mm, 231.7750 mm)
Point 5:(15.2400 mm, 127.0000 mm)
Point 6:(0.0000 mm, 0.0000 mm)
Width:10.1000 inches (256.5400 mm)
Height:11.6250 inches (295.2750 mm)
