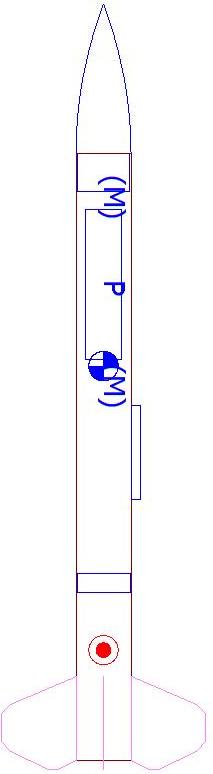

Aries II Rocksim Design File

Comments: entered into RockSim by Alan Estenson, revamped slightly for bt20

Designer: Ric Wilson

Download plans_eirp09_aries_ii.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 4.8451 inches from front
CP: 8.6498 inches from front
Margin: 5.17 Overstable

Parts Breakdown

• Estes Aries II Ogive Nose Cone
• DIY Eye Hook #4 Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.12 in]
• Estes Polyethylene LDPE Parachute (12.00 in)
• Custom Mass Object
• Estes ESTES 2321 Launch Lug
• Apogee 13029 Ring
• Estes Aries II Freeform Fin Set Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Estes ESTES 2321 Launch Lug
• Estes Aries II Freeform Fin Set Freeform Fin Set
