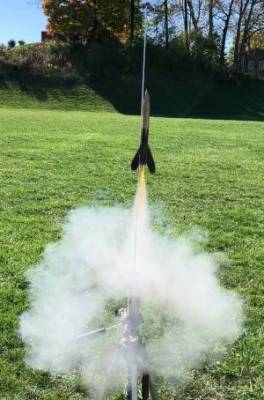

Astron Mark II Rocksim Design File

• Manufacturer: Estes

Download oop_estes_astron_markii.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Estes - Mark II {Kit} (2A) [1971-1984]

Parts Breakdown

• Estes Astron Mark II Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.50 in]
• Aerospace Speciality Products TC Ring
• LOC Precision SC-250 1/4 In Elastic shock cord Mass Object
• LOC/Precision Polyethylene LDPE Streamer (0.0020 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Estes Astron Mark II Freeform Fi Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.87 in]
• BalsaMachining.com EB13-P Ring
• Estes Engine hook Standard size Mass Object
• Estes 30162-2 Ring
• Estes 30162-2 Ring
• Estes ESTES 2321 Launch Lug
