Missile Command Navy Rocksim Design File

• Manufacturer: Estes

Comments: Flies unstable on C motors, Stable with B motor in low wind

Designer: Drawn by Bruce S. Levison

Download oop_estes_missile_command_navy.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

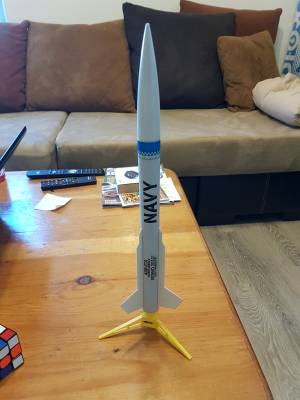

Kit Name: Estes - Missile Command Navy {Kit} [?-?]

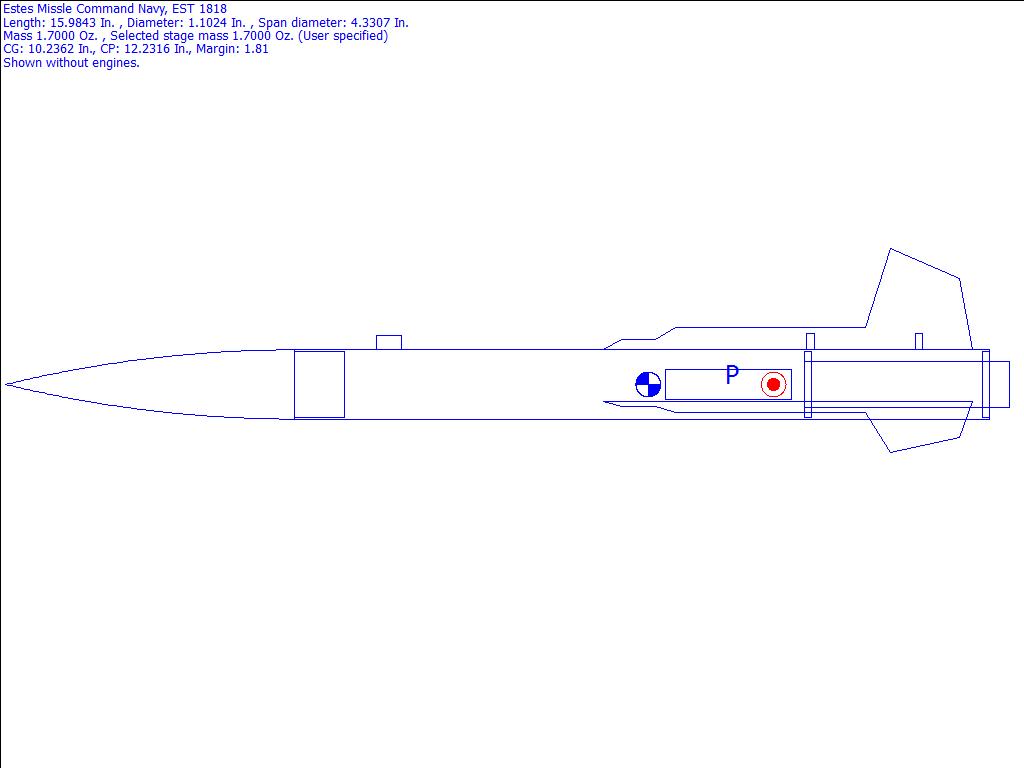

CG: 10.2362 inches from front
CP: 12.2316 inches from front
Margin: 1.81

Parts Breakdown

• Estes Missile Command Navy Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 11.06 in]
• Estes Missile Command Navy Freef Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.27 in]
• Custom Polyethylene LDPE Parachute (12.00 in)
• Custom Launch Lug
• Custom Launch Lug
• Custom Launch Lug
• Custom Ring
• Custom Ring
