Rocketry Parts Database >> Fins >>

estes_bandito.rkt Freeform Fin S Freeform Fin Set

Manufacturer:Estes
Part Number:60602
Style:Freeform Fin Set
Material:Polystyrene PS

Download as PDF

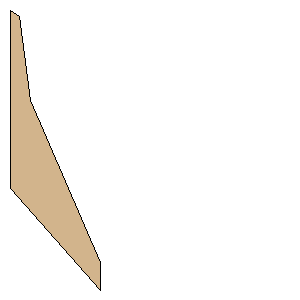

Point 1:(0.0000 mm, 50.2920 mm)
Point 2:(25.4000 mm, 78.7400 mm)
Point 3:(25.4000 mm, 71.1200 mm)
Point 4:(5.8420 mm, 25.4000 mm)
Point 5:(2.5400 mm, 1.7780 mm)
Point 6:(0.0000 mm, 0.0000 mm)
Width:1.9800 inches (50.2920 mm)
Height:3.1000 inches (78.7400 mm)
