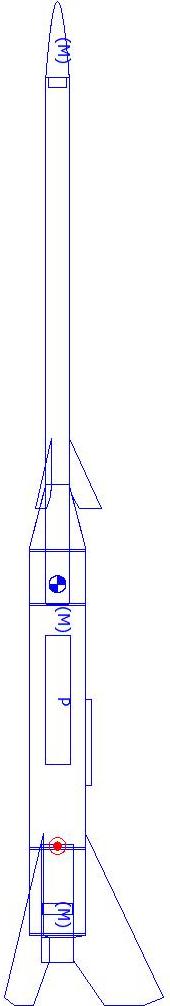

Rain Maker Rocksim Design File

• Manufacturer: Estes

Designer: Estes Industries, Inc., (data entered by Charles Keller based on Kit # 2009 instructions)

Download oop_estes_rainmaker.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

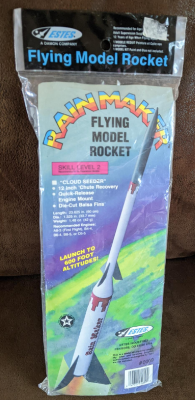

Kit Name: Estes - Rain Maker {Kit} [?-?]

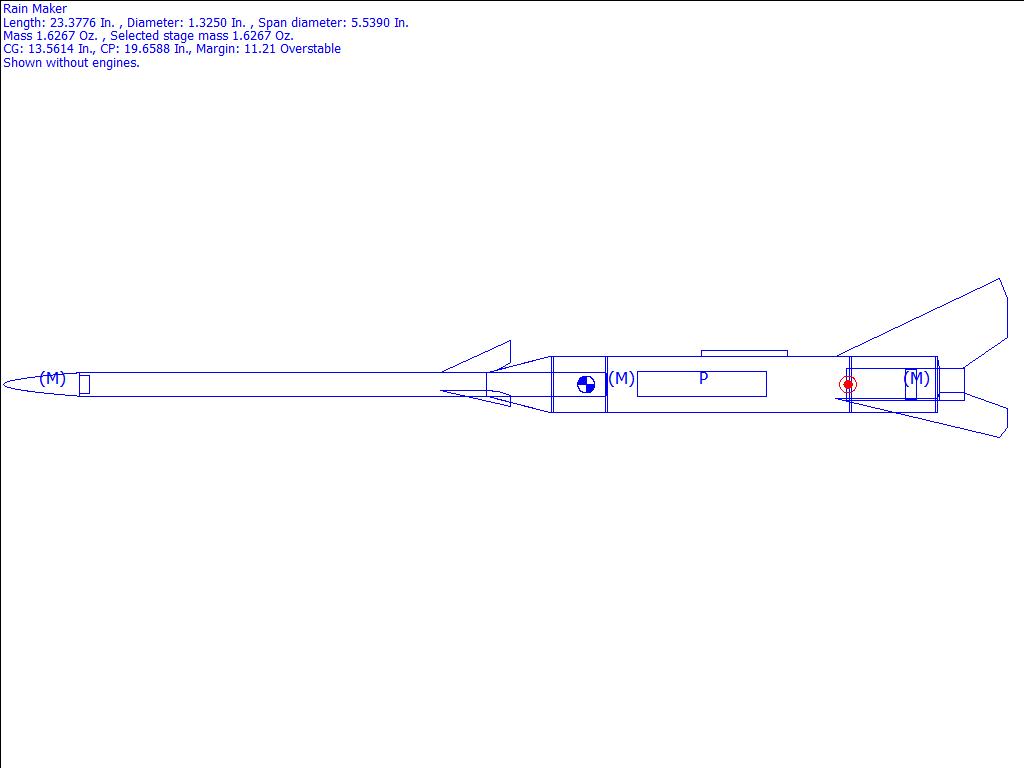

CG: 13.5614 inches from front
CP: 19.6588 inches from front
Margin: 11.21 Overstable

Parts Breakdown

• Estes Rain Maker Parabolic Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.50 in]
• Estes Estes Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Custom Ring
• Estes Rain Maker Freeform Fin Se Freeform Fin Set
• Custom Ring
• Custom Ring
• Custom Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Estes Engine hook Standard size Mass Object
• Custom Ring
• Estes Rain Maker Freeform Fin Se Freeform Fin Set
• Custom Mass Object
• Estes Polyethylene LDPE Parachute (18.00 in)
• Estes ESTES 2321 Launch Lug
• Estes 30125 Ring
• Estes 30125 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 0.03 in]
