Photon Disruptor Rocksim Design File

Contributed by Bruce Levison

• Manufacturer: Estes
• Motor Size: 18 mm
• Power: Low-Power
• Recovery: Parachute
• Skill Level: 2
• Style: Futuristic/Exotic

Comments: Estes Classic Series third incarnation of this design #3025 Used my fins on fins techniques for this one!

Designer: Estes

Download photondisruptor#3025.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Estes - Photon Disruptor {Kit} (003025) [2010-]
Diameter: 1.3300 inches
Length: 24.5000 inches
Style: Futuristic/Exotic

CG: 16.8423 inches from front
CP: 20.8245 inches from front
Margin: 3.00 Overstable

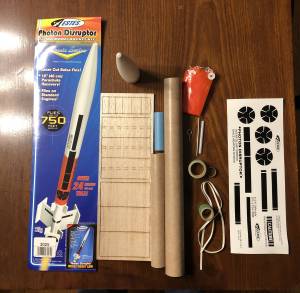

Parts Breakdown

• Estes Photon Disruptor Ogive Nose Cone
• Estes 038251 Screw Eye Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 13.50 in]
• Estes Polyethylene LDPE Parachute (18.00 in)
• Estes Mass Object
• Estes 30125 Ring
• Estes ESTES 038178 Launch Lug
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.75 in]
• Estes 30125 Ring
• Estes Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Estes Engine hook Standard size Mass Object
• Estes 30162-2 Ring
• Estes Ring
• Estes Photon Disruptor Trapezoid Trapezoid Fin Set
• Estes Photon Disruptor Trapezoid Trapezoid Fin Set
• Estes Photon Disruptor Trapezoid Trapezoid Fin Set
• External Pod
• Estes Photon Disruptor Freeform Freeform Fin Set
• Estes Photon Disruptor Trapezoid Trapezoid Fin Set
• External Pod
• Estes Photon Disruptor Freeform Freeform Fin Set
• Estes Photon Disruptor Trapezoid Trapezoid Fin Set
• External Pod
• Estes Photon Disruptor Freeform Freeform Fin Set
