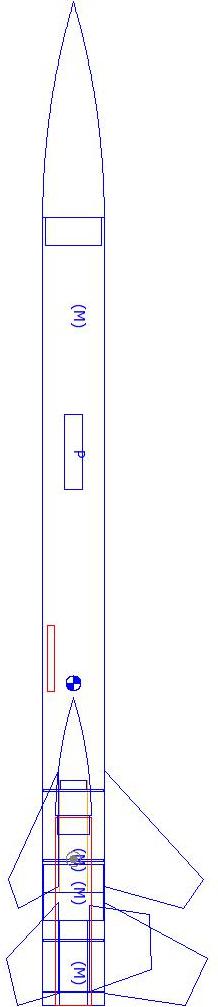

Renegade Rocksim Design File

Contributed by Ashley Lightfoot

• Manufacturer: Estes
• Motor Size: 18 mm
• Power: Low-Power
• Recovery: Parachute
• Skill Level: 3
• Style: Futuristic/Exotic

Comments: Estes Renegade built stock - except booster stage main tube cut to 3.00" to allow for better thrust. Rocket is fairly heavy and booster may streamline on recovery rather than tumble.

Designer: A. E. Lightfoot - 2/5/08

Download estes_renegade.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Estes - Renegade {Kit} (2109) [2003-2013]
Length: 26.6000 inches
Style: Futuristic/Exotic

CG: 13.0431 inches from front
CP: 19.3117 inches from front
Margin: 3.82 Overstable

Parts Breakdown

• Estes Renegade Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Apogee 13029 Ring
• Estes - Ring
• Estes - Ring
• Estes Renegade Freeform Fin Set Freeform Fin Set
• Estes ESTES 2328 Launch Lug
• Estes Engine hook Standard size Mass Object
• Estes Polyethylene LDPE Parachute (12.00 in)
• LOC Precision SC-250 1/4 In Elastic shock cord Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Apogee Components Ogive Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
• Apogee Components Ogive Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
• Estes Mass Object
• Estes - Ring
• Estes - Ring
• Estes Estes Ring
• Estes Renegade Freeform Fin Set Freeform Fin Set
• Estes Renegade Freeform Fin Set Freeform Fin Set
• Estes Renegade Freeform Fin Set Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.25 in]
• Estes Engine hook Standard size Mass Object
