oop_estes_broadsword.rkt Rocksim Design File

Contributed by Steve Rogers

• Manufacturer: Estes

Download oop_estes_broadsword.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

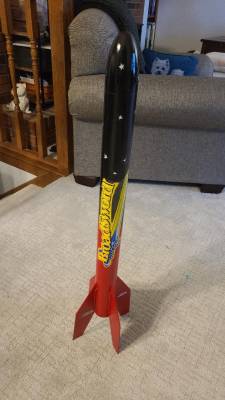

Kit Name: Estes - Broadsword {Kit} (2093) [1994-1996]

CG: 17.5366 inches from front
CP: 26.9330 inches from front
Margin: 3.61 Overstable

Parts Breakdown

• oop_estes_broadsword.rkt Ellipti Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 14.25 in]
• Estes Estes Ring
• Estes Rip stop nylon Parachute (18.00 in)
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 14.25 in]
• Custom Launch Lug
• Custom Launch Lug
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Custom Ring
• oop_estes_broadsword.rkt Freefor Freeform Fin Set
• Apogee CR-50-60 Ring
• Apogee CR-50-60 Ring
• Custom Ring
